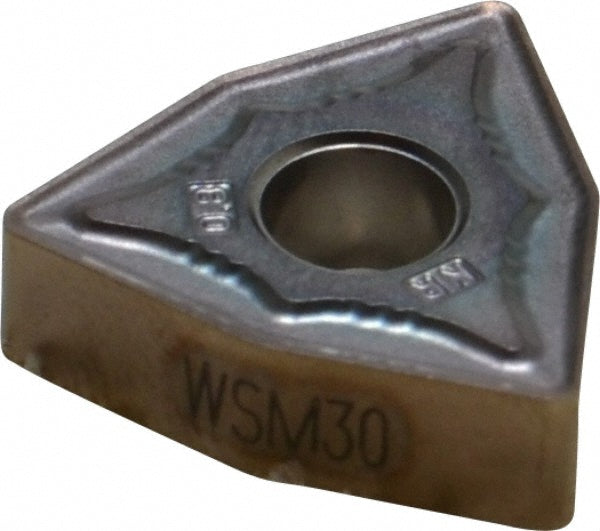

WNMG080408-NR4 WSM30 Carbide Insert, Grade WSM30, TiAlN - Walter 5354529

Walter

WNMG080408-NR4 WSM30 Carbide Insert, Grade WSM30, TiAlN - Walter 5354529

MFR# 5354529ISO/ANSI# WNMG080402Series WNMG-NR4

$20.46List $26.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeWSM30
MaterialCarbide
CoatingTiAlN

Description

The Walter 5354529 is a WNMG080408-NR4 WSM30 carbide indexable insert, grade WSM30, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerNR4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberWNMG432-NR4 WSM30
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-NR4 WSM30
Iso insert codeWNMG080402
Iso size code080402
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number5354529
Manufacturer gradeWSM30
Material gradeM30; P30; S30
Maximum depth of cut0.2278
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
