Walter

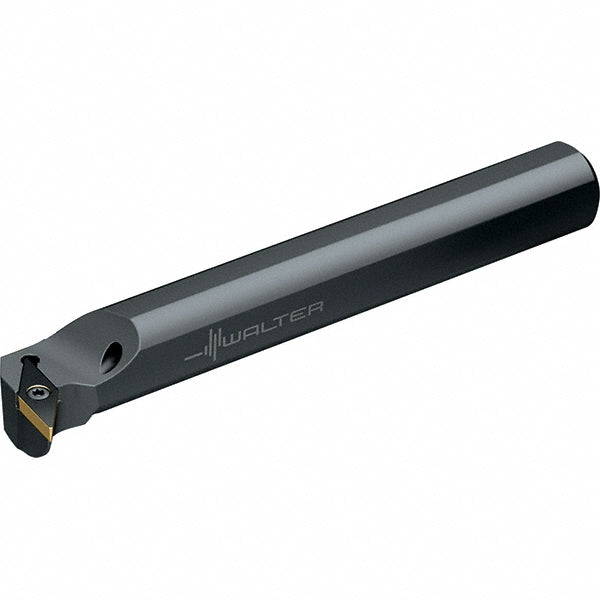

Indexable Boring - Walter 5364744
MFR# 5364744Series Walter Turn
$173.45List $203.04
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5364744 indexable boring. Series Walter Turn.
Specifications
Center to cutting edge0.4860
Compatible insert shapeDiamond
Compatible insert size code1103; 22
Compatible insert thickness (mm)3.18
Coolant throughYes
Cutting tool applicationBoring
Hand of holderRight Hand
Insert compatibilityVB/C.. 1103..; VB/C.. 22..
Insert holding methodScrew
Insert inscribed circle in1/4
Insert thickness in1/8
Lead angle93
Minimum bore diameter0.8500
Multi use toolNo
Overall length8.0000
RakeNeutral
Shank diameter in5/8
StandardsANSI; ISO
Toolholder styleA-SVUB
Tool materialSteel
