Walter

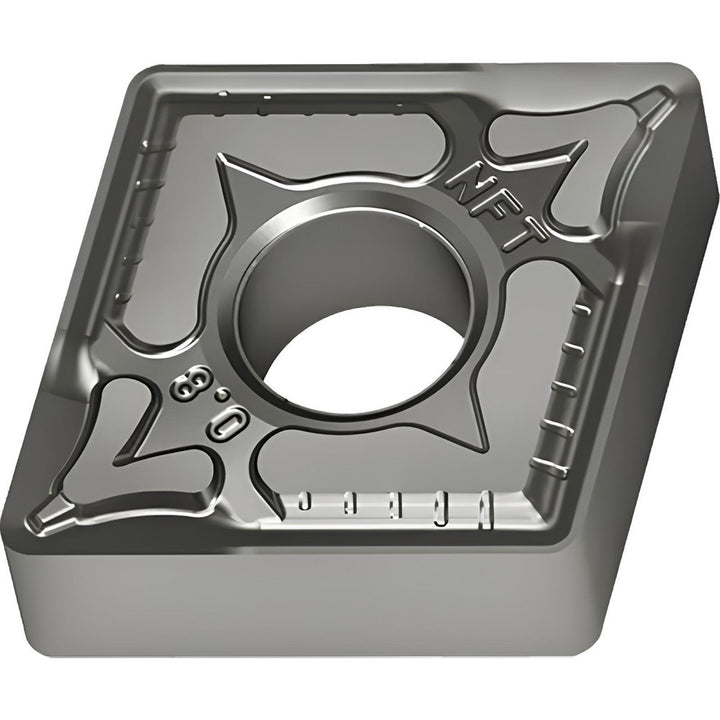

CNMG120408-NFT WS10 Carbide Insert, Grade WS10 - Walter 5381296
MFR# 5381296ISO/ANSI# CNMG432-NFT WS10Series CNMG-NFT
$14.05List $18.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWS10
MaterialCarbide
Description
The Walter 5381296 is a CNMG120408-NFT WS10 carbide indexable insert, grade WS10. Suited for superalloys & titanium.
Specifications
Chip breakerNFT
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG432-NFT WS10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-NFT WS10
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number5381296
Manufacturer gradeWS10
Material gradeS10
Maximum depth of cut0.0790
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle12
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
