Walter

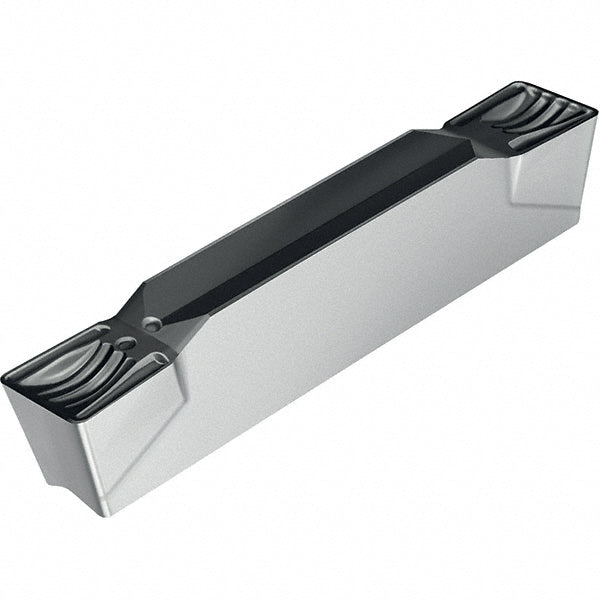

GX24-3E400N040-UF4 Carbide Insert, Grade WSM33, Al2O3 - Walter 5512428
MFR# 5512428ISO/ANSI# GX24-3E400N040-UF4Cat# GX24-3E400N040-UF4Series Tiger-tec
$33.18List $42.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33
MaterialCarbide
CoatingAl2O3
Description
The Walter 5512428 is a GX24-3E400N040-UF4 carbide indexable insert, grade WSM33, Al2O3 coated. Suited for universal.
Specifications
Ansi codeGX24-3E400N040-UF4
Chip breakerUF4
Coating finishAl2O3
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size3E400N040
Insert size code3E400N04
Insert styleGX
Iso codeGX24-3E400N040-UF4
Manufacturers catalog numberGX24-3E400N040-UF4
Manufacturer gradeWSM33
Material gradeS30; M30; P35
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.9449
Primary workpiece materialUniversal
StandardsANSI; ISO
