Walter

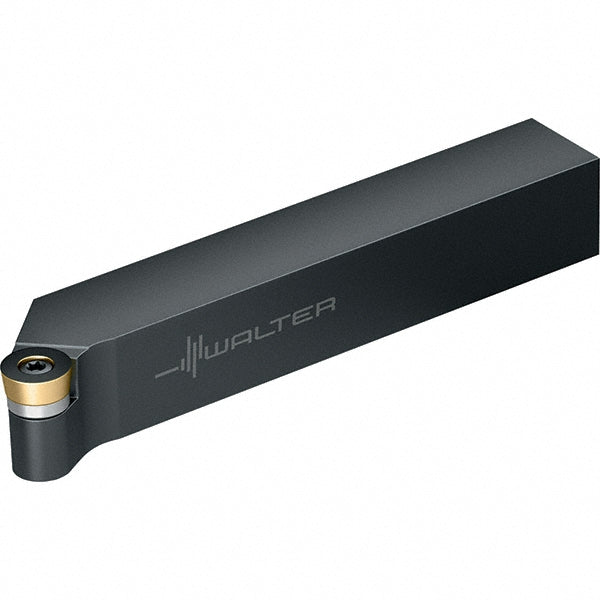

Indexable Turning & Profiling - Walter 5523277
MFR# 5523277Series Walter Turn
$145.23List $170.00
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5523277 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeRCT 43
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.4460
Insert compatibilityRC.T 43..
Insert holding methodScrew
Insert inscribed circle in1/2
Lead angle0.0
Multi use toolNo
Overall length6.0000
RakeNeutral
Rake angle0
Shank height1.0000
Shank width1.0000
StandardsANSI; ISO
Toolholder styleSRSC
