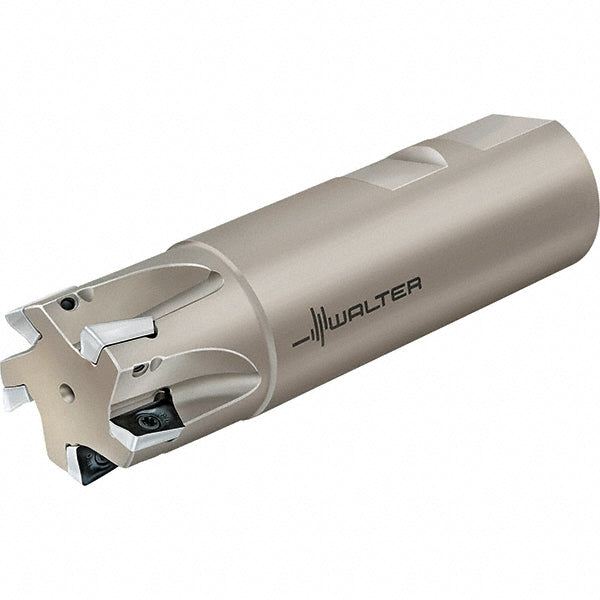

Indexable End Mills - Walter 5528974

MFR# 5528974Series Xtra-tec

$394.95List $497.88 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter 5528974 indexable end mills. Suited for universal. Series Xtra-tec.

Specifications

Coolant throughYes
Cutter styleF4042R
Cutting diameter0.6299in
Cutting diameter (mm)16.00
Head length1.0236
Insert compatibilityADGT 10T316R-D67; ADGT 10T316R-G77; ADGT 10T325R-D67; ADGT 10T325R-G77; ADGT 10T330R-D67; ADGT 10T330R-G77; ADGT 10T332R-D67; ADGT 10T332R-G77; ADGT 10T3PER-D67; ADGT 10T3PER-G77; ADHT 10T3PER-G88; ADKT10T3PER-F56; ADMT 10T308R-F56; ADMT 10T308R-G56; ADMT
Insert holding methodScrew
Iso numberF4042R.W16.016.Z02.10
Lead angle90
Maximum depth of cut0.3937
Maximum rpm10000
Number of cutter inserts2
Number of flutes2
Overall length3.3465
Primary workpiece materialUniversal
Secondary workpiece materialGlass; Graphite; Hard Material
Shank diameter0.6299
Shank length2.3228
Shank typeWeldon Flat
StandardsISO:ANSI
