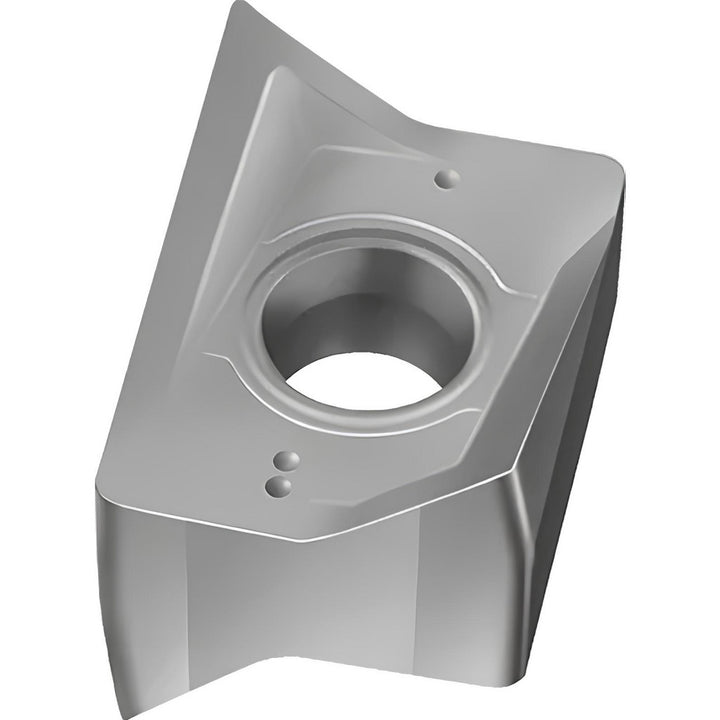

LNGX130708R-L88 WK10 Solid Carbide Insert, Grade WK10 - Walter 5535309

Walter

LNGX130708R-L88 WK10 Solid Carbide Insert, Grade WK10 - Walter 5535309

MFR# 5535309ISO/ANSI# LNGX130708R-L88 WK10Cat# LNGX130708R-L88Series LNGX

$22.23List $28.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWK10
MaterialSolid Carbide

Description

The Walter 5535309 is a LNGX130708R-L88 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.

Specifications

Ansi codeLNGX130708R-L88 WK10
Chip breakerL88
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityF2010; F4041
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size13
Insert size code130708
Insert styleLNGX
Iso codeLNGX130708R-L88 WK10
Length0.5390
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGX130708R-L88
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.5390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3050
Thickness range0.2500 to 0.3500
Width0.4330
