Walter

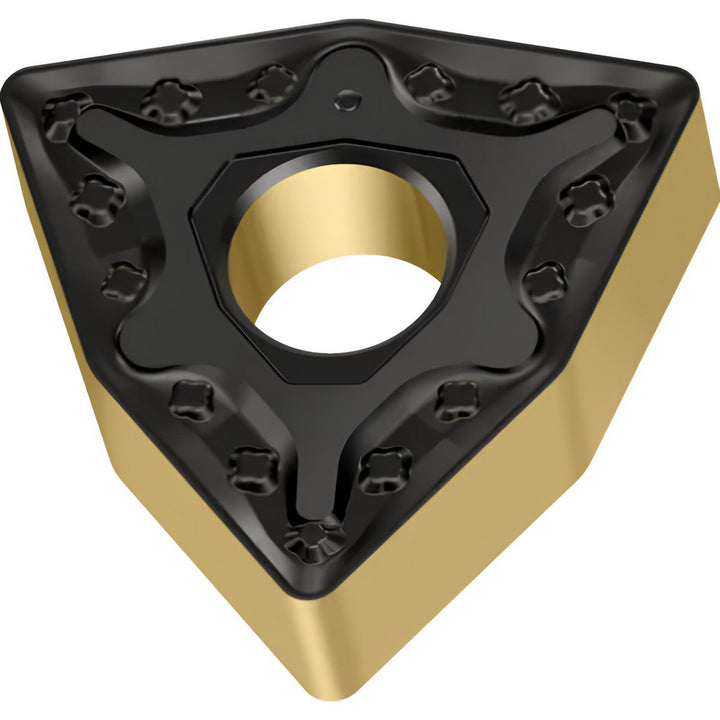

WNMG080408-NM4 WSM20 Carbide Insert, Grade WSM20, TiAlN - Walter 5585373
MFR# 5585373ISO/ANSI# WNMG080402Series WNMG-NM4
$20.46List $26.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeWSM20
MaterialCarbide
CoatingTiAlN
Description
The Walter 5585373 is a WNMG080408-NM4 WSM20 carbide indexable insert, grade WSM20, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerNM4
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberWNMG432-NM4 WSM20
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-NM4 WSM20
Iso insert codeWNMG080402
Iso size code080402
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number5585373
Manufacturer gradeWSM20
Material gradeM20; P20; S20
Maximum depth of cut0.2278
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
