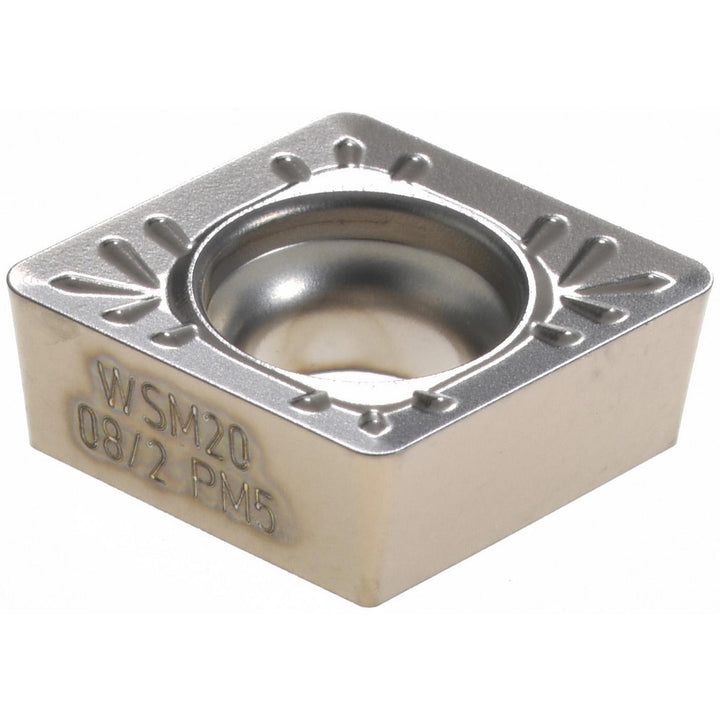

CCMT09T308-PM5 WSM20 Carbide Insert, Grade WSM20, TiAlN - Walter 5614916
MFR# 5614916ISO/ANSI# CCMT09T308Series CCMT-PM5
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeWSM20
MaterialCarbide
CoatingTiAlN
Description
The Walter 5614916 is a CCMT09T308-PM5 WSM20 carbide indexable insert, grade WSM20, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerPM5
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCMT3(2.5)2-PM5 WSM20
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-PM5 WSM20
Iso insert codeCCMT09T308
Iso size code09T308
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number5614916
Manufacturer gradeWSM20
Material gradeM20; P20; S20
Maximum depth of cut0.1269
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3810
Wiper edgeNo
