Walter

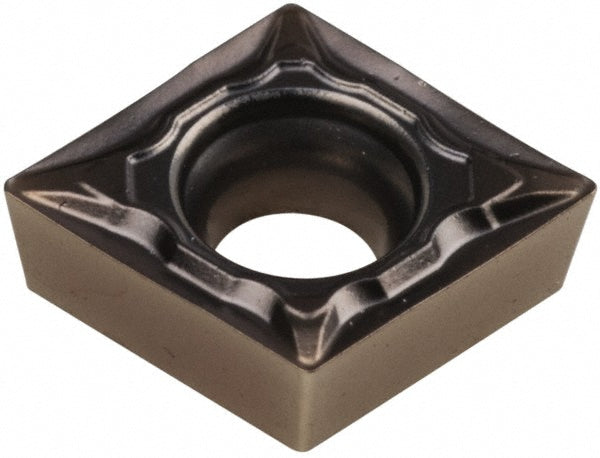

CCMT060204-PF4 WSM20 Carbide Insert, Grade WSM20, TiAlN - Walter 5615013
MFR# 5615013ISO/ANSI# CCMT060204Series CCMT-PF4
$12.80List $16.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeWSM20
MaterialCarbide
CoatingTiAlN
Description
The Walter 5615013 is a CCMT060204-PF4 WSM20 carbide indexable insert, grade WSM20, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerPF4
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCMT2(1.5)1-PF4 WSM20
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-PF4 WSM20
Iso insert codeCCMT060204
Iso size code060204
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number5615013
Manufacturer gradeWSM20
Material gradeM20; P20; S20
Maximum depth of cut0.0846
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.2540
Wiper edgeNo
