Walter

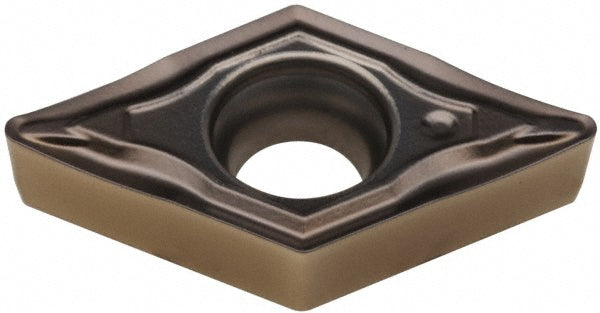

DCMT11T304-PF4 WSM20 Carbide Insert, Grade WSM20, TiAlN - Walter 5615026
MFR# 5615026ISO/ANSI# DCMT11T304Series DCMT-PF4
$17.77List $22.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeWSM20
MaterialCarbide
CoatingTiAlN
Description
The Walter 5615026 is a DCMT11T304-PF4 WSM20 carbide indexable insert, grade WSM20, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerPF4
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55
Industry standard numberDCMT3(2.5)1-PF4 WSM20
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-PF4 WSM20
Iso insert codeDCMT11T304
Iso size code11T304
Lead angle55
Length range0.4000 - 0.5000
Manufacturers catalog number5615026
Manufacturer gradeWSM20
Material gradeM20; P20; S20
Maximum depth of cut0.1525
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
