Walter

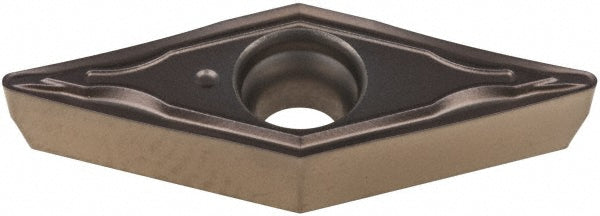

VCMT110304-PF4 WSM20 Carbide Insert, Grade WSM20, TiAlN - Walter 5615075
MFR# 5615075ISO/ANSI# VCMT110304Series VCMT-PF4
$21.56List $27.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeWSM20
MaterialCarbide
CoatingTiAlN
Description
The Walter 5615075 is a VCMT110304-PF4 WSM20 carbide indexable insert, grade WSM20, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVCMT221
Ansi size code221
Chip breakerPF4
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle35
Industry standard numberVCMT221-PF4 WSM20
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4360
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVCMT
Insert thickness in1/8
Iso codeVCMT110304-PF4 WSM20
Iso insert codeVCMT110304
Iso size code110304
Lead angle35
Length range0.4000 - 0.5000
Manufacturers catalog number5615075
Manufacturer gradeWSM20
Material gradeM20; P20; S20
Maximum depth of cut0.1452
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
