Walter

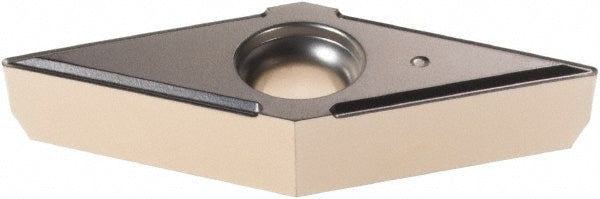

VBMT160404-PS5 WSM20 Carbide Insert, Grade WSM20, TiAlN - Walter 5619944
MFR# 5619944ISO/ANSI# VBMT160404Series VBMT-PS5
$22.83List $29.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeWSM20
MaterialCarbide
CoatingTiAlN
Description
The Walter 5619944 is a VBMT160404-PS5 WSM20 carbide indexable insert, grade WSM20, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVBMT331
Ansi size code331
Chip breakerPS5
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1730
Included angle35
Industry standard numberVBMT331-PS5 WSM20
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-PS5 WSM20
Iso insert codeVBMT160404
Iso size code160404
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number5619944
Manufacturer gradeWSM20
Material gradeM20; P20; S20
Maximum depth of cut0.0780
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle5
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
