Walter

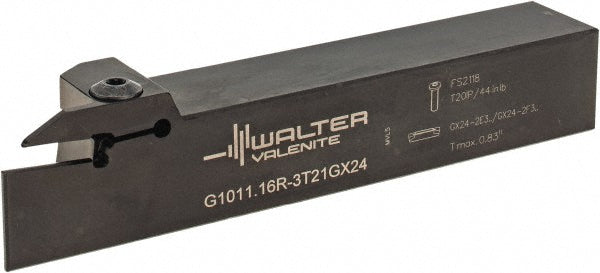

Indexable Grooving - Walter 5622791
MFR# 5622791Series G1011
$217.74List $254.88
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5622791 indexable grooving. Suited for universal. Series G1011.
Specifications
Back of bar to cutting edge1.0160
Compatible insert size codeGX24-2E3/F3
Complete insert compatibilityGX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N020-CE4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N15-RD4; GX24-2E300N150-RD4
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.5750
Insert compatibilityGX24-2E3/F3..
Insert corner radius0.0630
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.8270
Maximum groove width0.1250
Minimum groove width0.1180
Overall length5.9060
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.3307
Shank width diameter1.0000
Toolholder styleG1011
