Walter

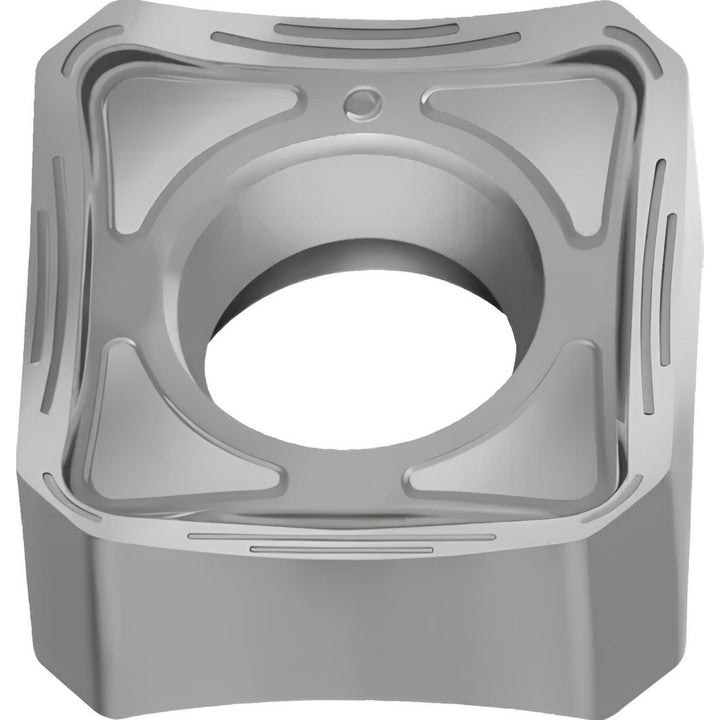

SNHX1205ANN-K88 WK10 Solid Carbide Insert, Grade WK10 - Walter 5623748
MFR# 5623748ISO/ANSI# SNHX1205ANN-K88 WK10Cat# SNHX1205ANN-K88Series SNHX
$25.35List $32.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeWK10
MaterialSolid Carbide
Description
The Walter 5623748 is a SNHX1205ANN-K88 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.
Specifications
Ansi codeSNHX1205ANN-K88 WK10
Chip breakerK88
Coating processUncoated
Corner radius0.0000
Cutter series compatibilityF2010; M5009
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNHX
Iso codeSNHX1205ANN-K88 WK10
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSNHX1205ANN-K88
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle25
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2180
Thickness range0.2000 to 0.2200
Width in1/2
