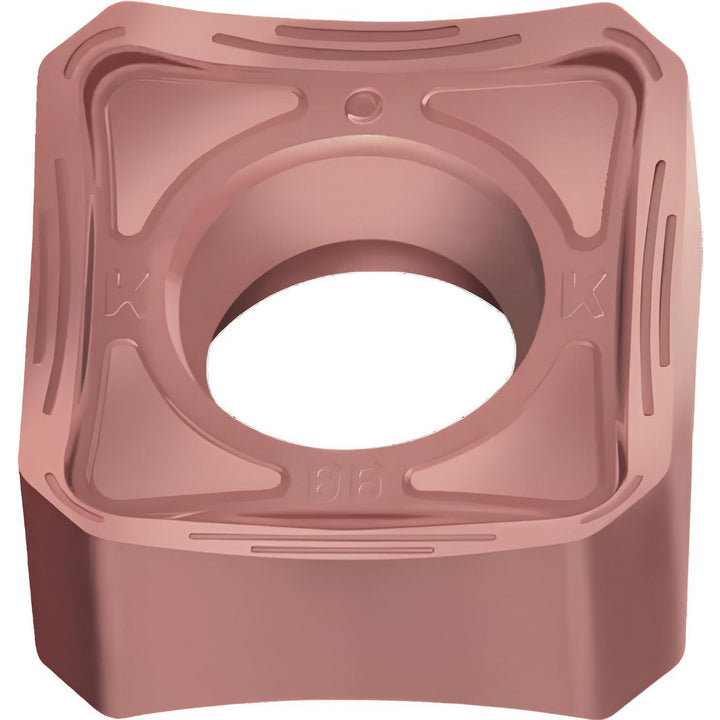

SNHX1205ANN-K88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5623813

Walter

SNHX1205ANN-K88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5623813

MFR# 5623813ISO/ANSI# SNHX1205ANN-K88 WXN15Cat# SNHX1205ANN-K88Series SNHX

$30.41List $39.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWXN15
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5623813 is a SNHX1205ANN-K88 WXN15 solid carbide indexable insert, grade WXN15, TiCN coated. Suited for non-ferrous metal.

Specifications

Ansi codeSNHX1205ANN-K88 WXN15
Chip breakerK88
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF2010; M5009
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNHX
Iso codeSNHX1205ANN-K88 WXN15
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSNHX1205ANN-K88
Manufacturer gradeWXN15
Material applicationNon-Ferrous Metal
Material gradeN15
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle25
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2180
Thickness range0.2000 to 0.2200
Width in1/2
