Walter

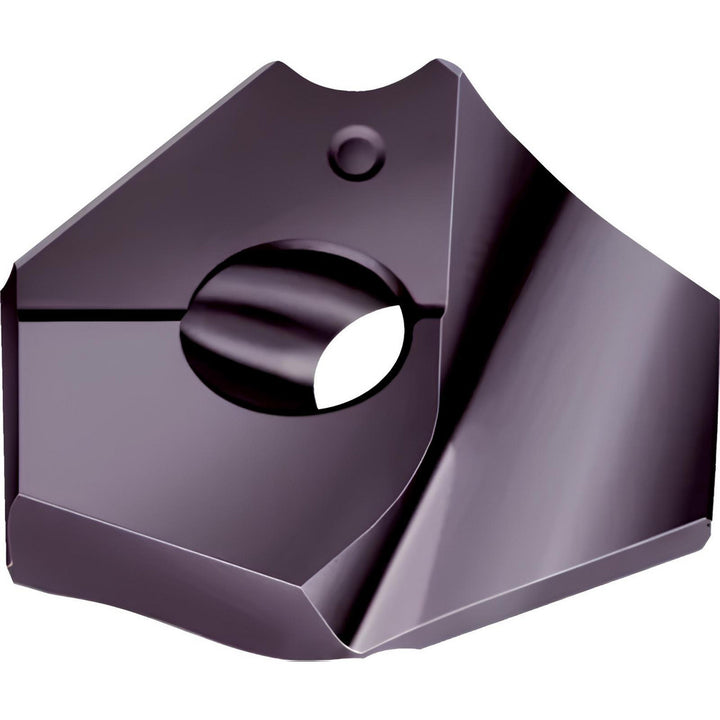

Carbide Insert, Grade WMP35, TiAlN - Walter 5656108
MFR# 5656108Series P6003
$122.10List $156.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
GradeWMP35
CoatingTiAlN
Description
The Walter 5656108 is a carbide indexable insert, grade WMP35, TiAlN coated. Suited for superalloys & titanium.
Specifications
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in1/2
Drill point angle140
Flute typeHelical
Included angle degree140
Insert holding methodClamp
Insert seat sizeA
Iso numberP6003-D12,70R WMP35
Manufacturer gradeWMP35
Material gradeP35; M35; S35
Number of flutes1
Point typeStandard
Primary workpiece materialSuperalloys & Titanium
Secondary workpiece materialSteel; Stainless Steel
Spiral typeRegular Spiral
StandardsANSI; ISO
StyleP6003
Tip materialSolid Carbide
