Walter
Carbide Insert, Grade WNN25, DLC - Walter 5656257
MFR# 5656257Series P6004
$137.26List $176.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
GradeWNN25
CoatingDLC
Description

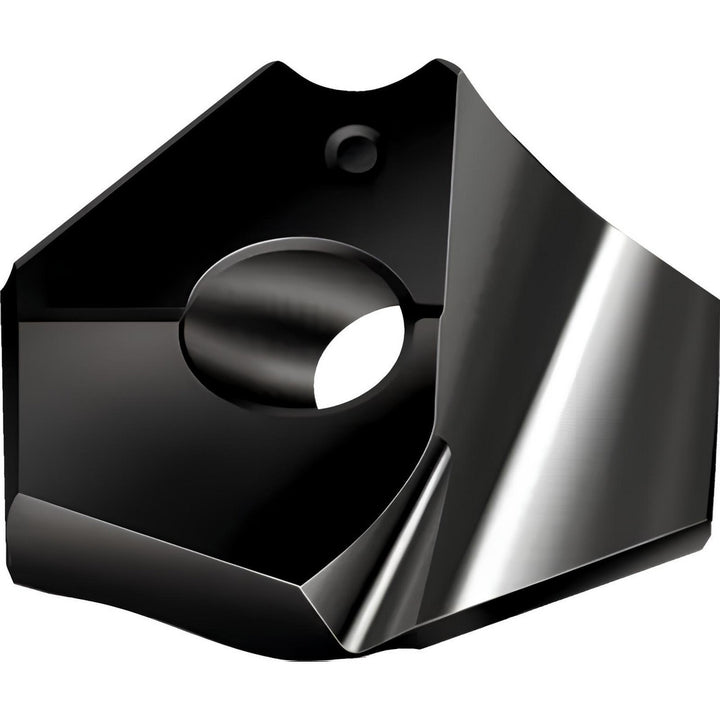

The Walter 5656257 is a carbide indexable insert, grade WNN25, DLC coated. Suited for non-ferrous metal.
Specifications
Coating finishDLC
Coating processPVD
Coolant throughNo
Cutting diameter0.6890
Drill point angle140
Flute typeHelical
Included angle degree140
Insert holding methodClamp
Insert seat sizeC
Iso numberP6004-D17,50R WNN25
Manufacturer gradeWNN25
Material gradeN25
Number of flutes1
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Secondary workpiece materialNon-Ferrous Metal
Spiral typeRegular Spiral
StandardsANSI; ISO
StyleP6004
Tip materialSolid Carbide
