Walter

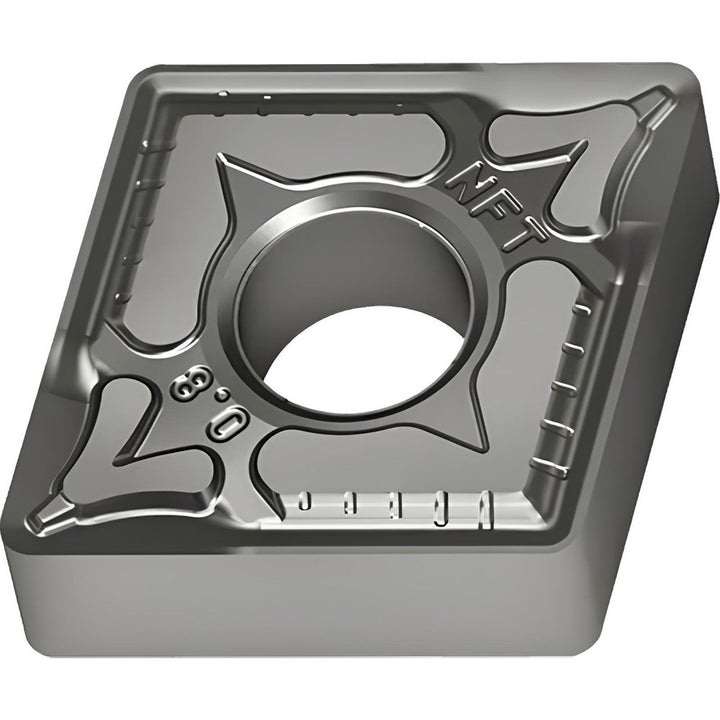

CNMG120404-NFT WS10 Carbide Insert, Grade WS10 - Walter 5691411
MFR# 5691411ISO/ANSI# CNMG431-NFT WS10Series CNMG-NFT
$16.87List $21.26
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWS10
MaterialCarbide
Description
The Walter 5691411 is a CNMG120404-NFT WS10 carbide indexable insert, grade WS10. Suited for superalloys & titanium.
Specifications
Chip breakerNFT
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG431-NFT WS10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-NFT WS10
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number5691411
Manufacturer gradeWS10
Material gradeS10
Maximum depth of cut0.0390
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle12
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.508
Wiper edgeNo
