Walter

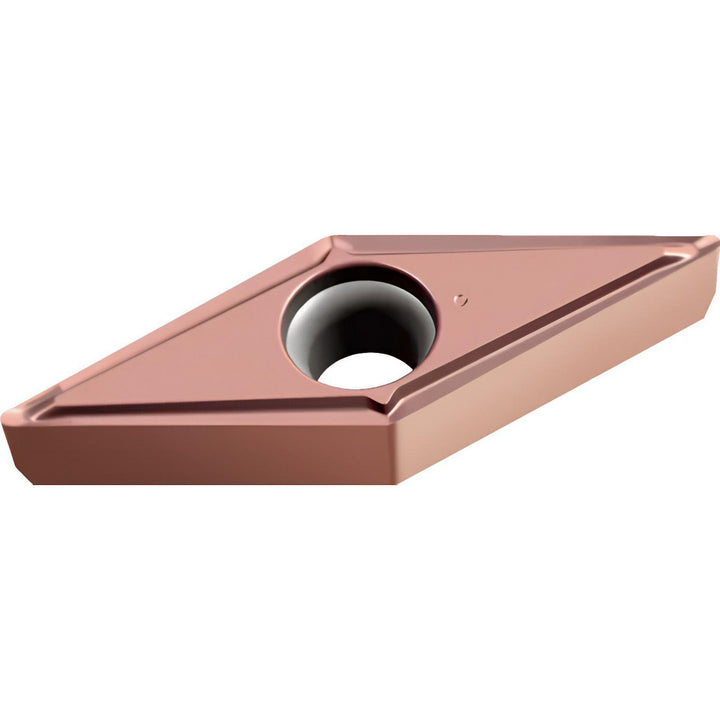

VCGT110302-PF2 WSM20 Carbide Insert, Grade WSM20, TiAlN - Walter 5835001
MFR# 5835001ISO/ANSI# VCGT110302Series VCGT-PF2
$31.48List $40.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeWSM20
MaterialCarbide
CoatingTiAlN
Description
The Walter 5835001 is a VCGT110302-PF2 WSM20 carbide indexable insert, grade WSM20, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVCGT220.5
Ansi size code220.5
Chip breakerPF2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle35
Industry standard numberVCGT2(2)0.5-PF2 WSM20
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4360
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code220.5
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110302-PF2 WSM20
Iso insert codeVCGT110302
Iso size code110302
Lead angle35
Length range0.4000 - 0.5000
Manufacturers catalog number5835001
Manufacturer gradeWSM20
Material gradeM20; P20; S20
Maximum depth of cut0.0780
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
