Walter

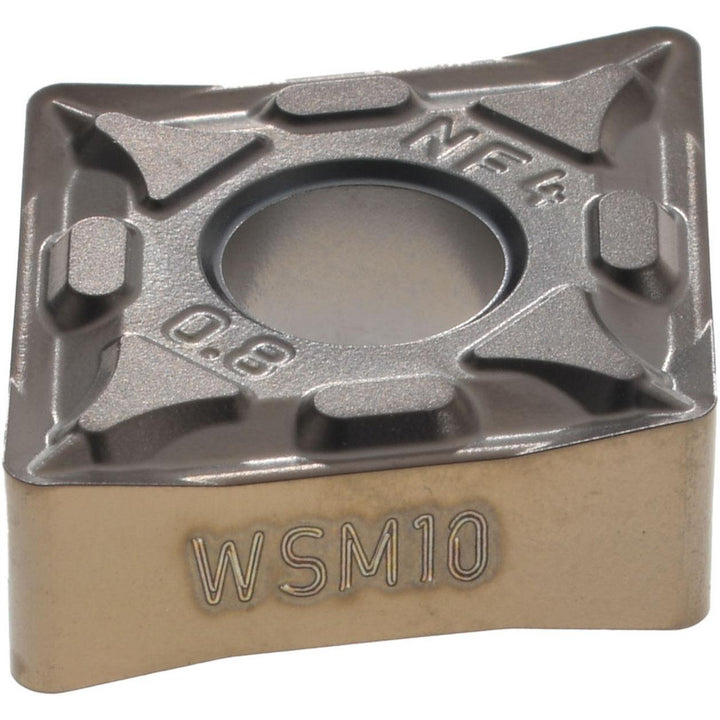

CNMG120408-NF4 WSM10 Carbide Insert, Grade WSM10, TiAlN - Walter 5847592
MFR# 5847592ISO/ANSI# CNMG120408Series CNMG-NF4
$22.18List $27.96
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWSM10
MaterialCarbide
CoatingTiAlN
Description
The Walter 5847592 is a CNMG120408-NF4 WSM10 carbide indexable insert, grade WSM10, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerNF4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG432-NF4 WSM10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-NF4 WSM10
Iso insert codeCNMG120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number5847592
Manufacturer gradeWSM10
Material gradeM10; P10; S10
Maximum depth of cut0.1692
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
