Walter

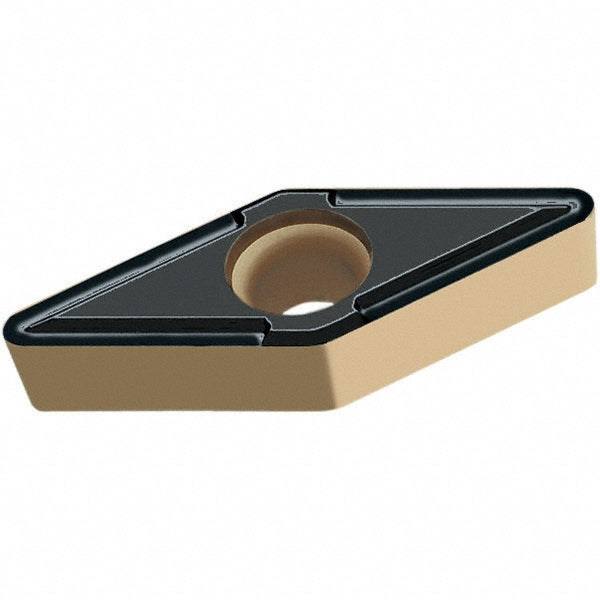

VBMT160408-PS5 WSM10 Carbide Insert, Grade WSM10, TiAlN - Walter 5848696
MFR# 5848696ISO/ANSI# VBMT160408Series VBMT-PS5
$24.76List $31.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeWSM10
MaterialCarbide
CoatingTiAlN
Description
The Walter 5848696 is a VBMT160408-PS5 WSM10 carbide indexable insert, grade WSM10, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVBMT332
Ansi size code332
Chip breakerPS5
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1730
Included angle35
Industry standard numberVBMT332-PS5 WSM10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408-PS5 WSM10
Iso insert codeVBMT160408
Iso size code160408
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number5848696
Manufacturer gradeWSM10
Material gradeM10; P10; S10
Maximum depth of cut0.0980
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle5
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
