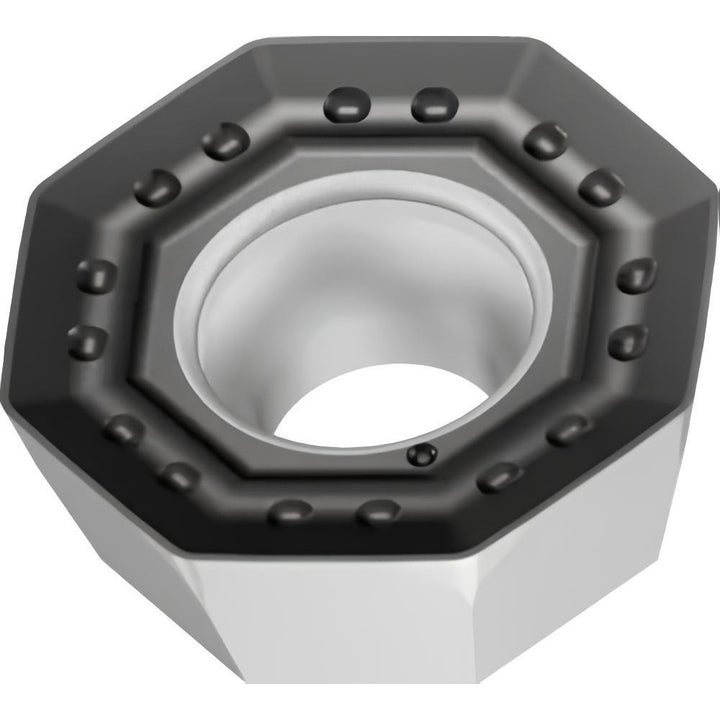

ODMT0504ZZN-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5854975

Walter

ODMT0504ZZN-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5854975

MFR# 5854975ISO/ANSI# ODMT0504ZZN-D57 WKP35SCat# ODMT0504ZZN-D57Series ODMT

$19.53List $25.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeOctagon
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5854975 is a ODMT0504ZZN-D57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeODMT0504ZZN-D57 WKP35S
Chip breakerD57
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM5004
Cutting edge styleHoned
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code0504
Insert styleODMT
Iso codeODMT0504ZZN-D57 WKP35S
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberODMT0504ZZN-D57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.2070
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
