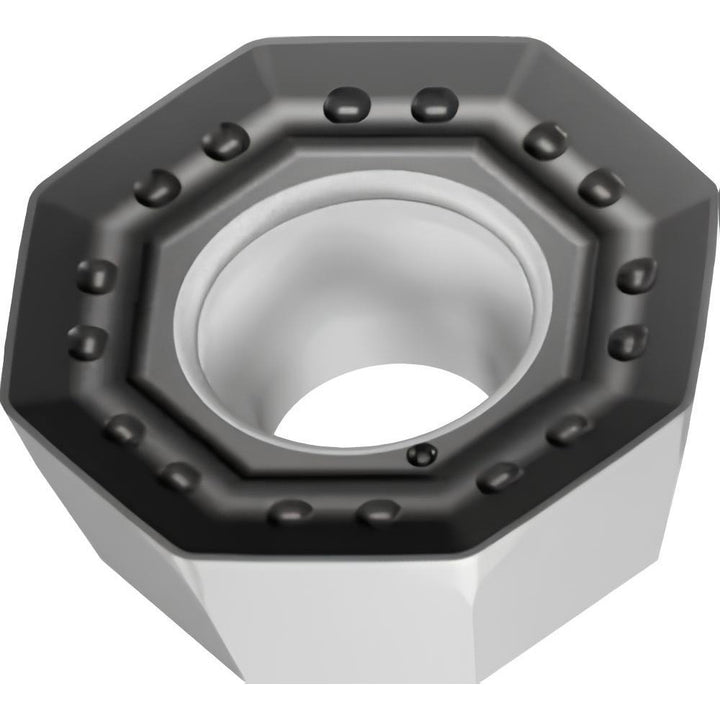

ODHT0504ZZN-F57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5854976

Walter

ODHT0504ZZN-F57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5854976

MFR# 5854976ISO/ANSI# ODHT0504ZZN-F57 WKP35SCat# ODHT0504ZZN-F57Series ODHT

$25.84List $33.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeOctagon
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5854976 is a ODHT0504ZZN-F57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeODHT0504ZZN-F57 WKP35S
Chip breakerF57
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM5004
Cutting edge styleChamfered; Honed
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code0504
Insert styleODHT
Iso codeODHT0504ZZN-F57 WKP35S
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberODHT0504ZZN-F57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.2070
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
