ODHT0605ZZN-F57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5854978

Walter

ODHT0605ZZN-F57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5854978

MFR# 5854978ISO/ANSI# ODHT0605ZZN-F57 WKP35SCat# ODHT0605ZZN-F57Series ODHT

$34.52List $44.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeOctagon
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

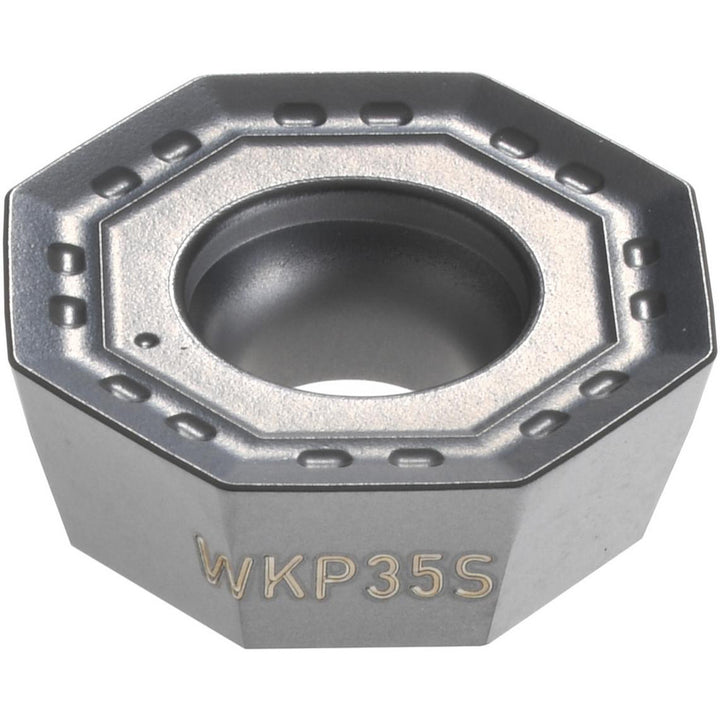

The Walter 5854978 is a ODHT0605ZZN-F57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeODHT0605ZZN-F57 WKP35S
Chip breakerF57
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; M5004
Cutting edge styleChamfered; Honed
Included angle degree135
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code0605
Insert styleODHT
Iso codeODHT0605ZZN-F57 WKP35S
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberODHT0605ZZN-F57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.2590
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
