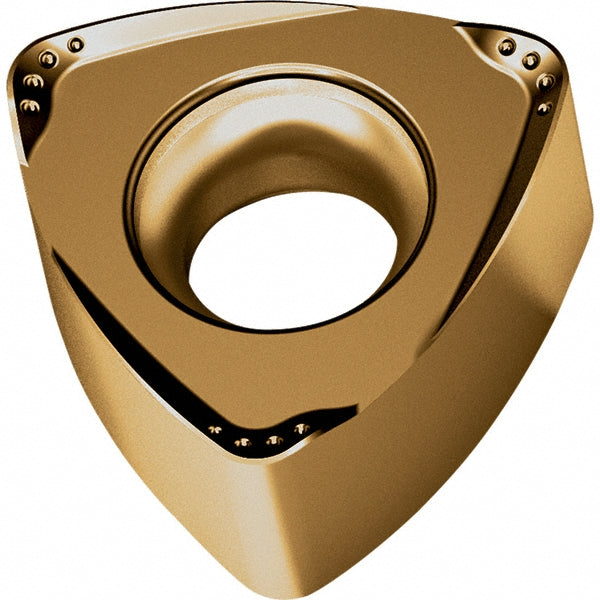

P23696-2.0 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5882880

Walter

P23696-2.0 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5882880

MFR# 5882880ISO/ANSI# P23696-2.0 WKP35SCat# P23696-2.0Series P23696

$43.95List $56.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5882880 is a P23696-2.0 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeP23696-2.0 WKP35S
Chip breakerCommon
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutter series compatibilityF4030
Cutting edge effective length0.3748
Cutting edge styleHigh Feed Rate
Hole diameter0.2165
Included angle degree60
Inscribed circle0.5330
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert sizeP2
Insert size codeP23696
Insert styleP23696
Iso codeP23696-2.0 WKP35S
Length in3/8
Length range0.5000 to 0.6000
Manufacturers catalog numberP23696-2.0
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.3748
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2920
Thickness range0.2500 to 0.3500
Width in3/8
