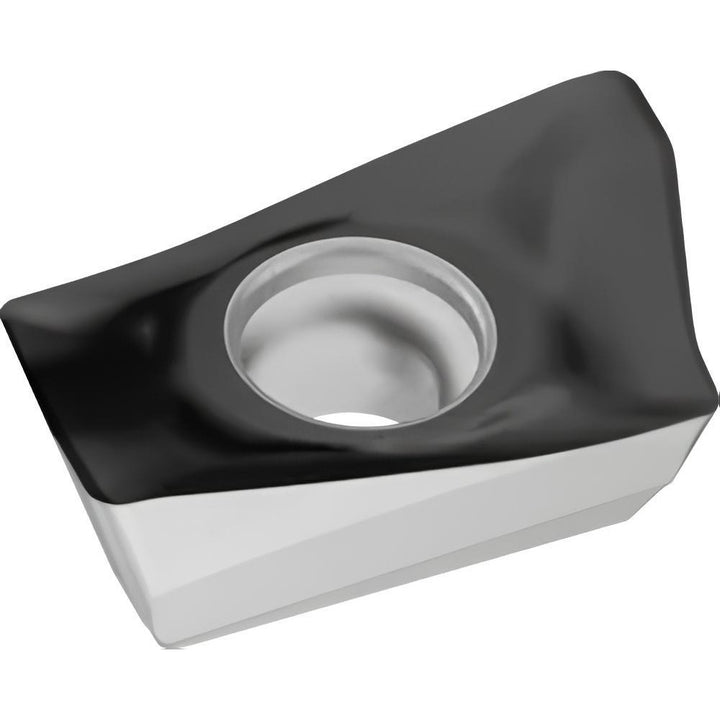

ADGT1606PER-D56 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886162

Walter

ADGT1606PER-D56 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886162

MFR# 5886162ISO/ANSI# ADGT1606PER-D56 WKP35SCat# ADGT1606PER-D56Series ADGT

$36.96List $47.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5886162 is a ADGT1606PER-D56 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeADGT1606PER-D56 WKP35S
Chip breakerD56
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; F4042; F4238
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.4250
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1606
Insert styleADGT
Iso codeADGT1606PER-D56 WKP35S
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberADGT1606PER-D56
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.6890
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2420
Thickness range0.2350 to 0.2500
Width0.4250
