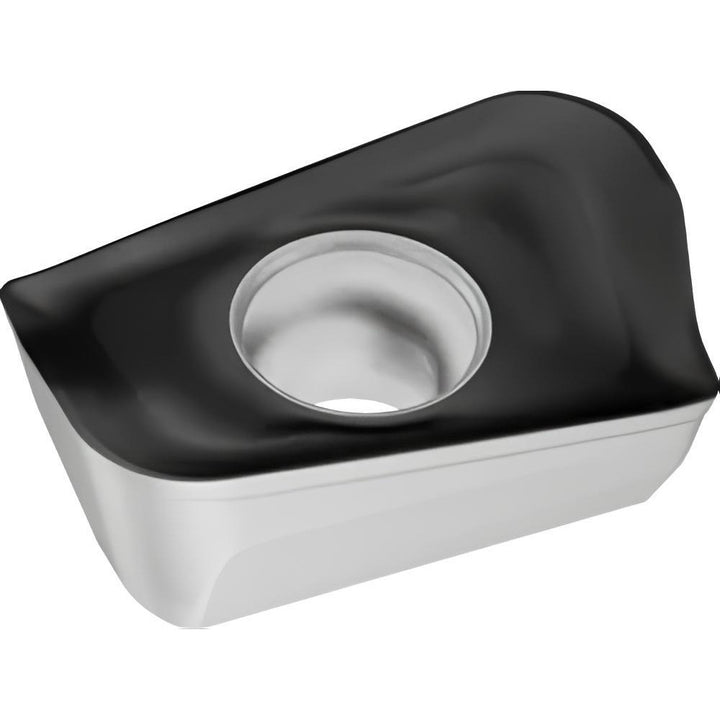

ADMT080316R-F56 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886210

Walter

ADMT080316R-F56 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886210

MFR# 5886210ISO/ANSI# ADMT080316R-F56 WKP35SCat# ADMT080316R-F56Series ADMT

$22.83List $29.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5886210 is a ADMT080316R-F56 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeADMT080316R-F56 WKP35S
Chip breakerF56
Coating finishTiCN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityF4038; F4042
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size08
Insert size code080316
Insert styleADMT
Iso codeADMT080316R-F56 WKP35S
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberADMT080316R-F56
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1320
Thickness range0.1250 to 0.1500
Width in17/64
