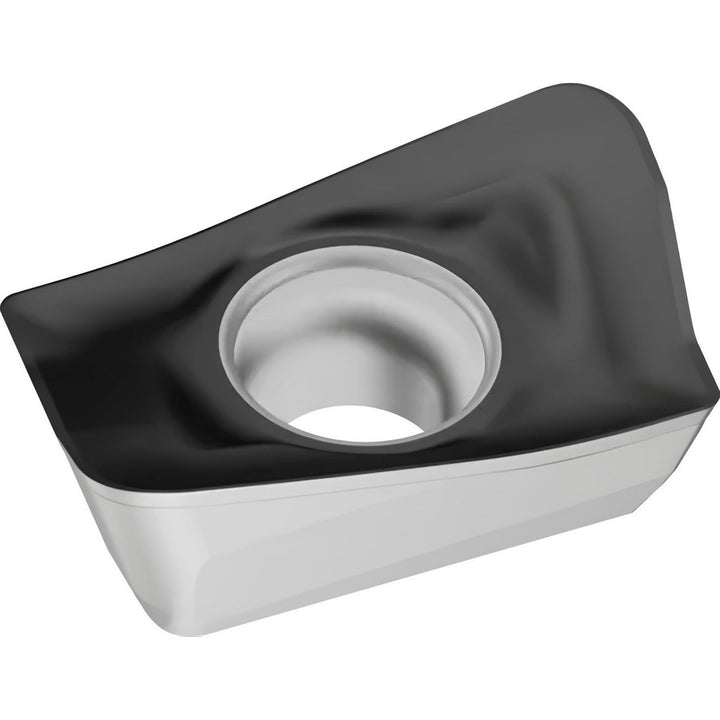

ADMT120416R-F56 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886270

Walter

ADMT120416R-F56 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886270

MFR# 5886270ISO/ANSI# ADMT120416R-F56 WKP35SCat# ADMT120416R-F56Series ADMT

$24.67List $31.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5886270 is a ADMT120416R-F56 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeADMT120416R-F56 WKP35S
Chip breakerF56
Coating finishTiCN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityF2010; F2252; F4042; F4138
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.3310
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120416
Insert styleADMT
Iso codeADMT120416R-F56 WKP35S
Length0.5350
Length range0.5000 to 0.6000
Manufacturers catalog numberADMT120416R-F56
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5350
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3310
