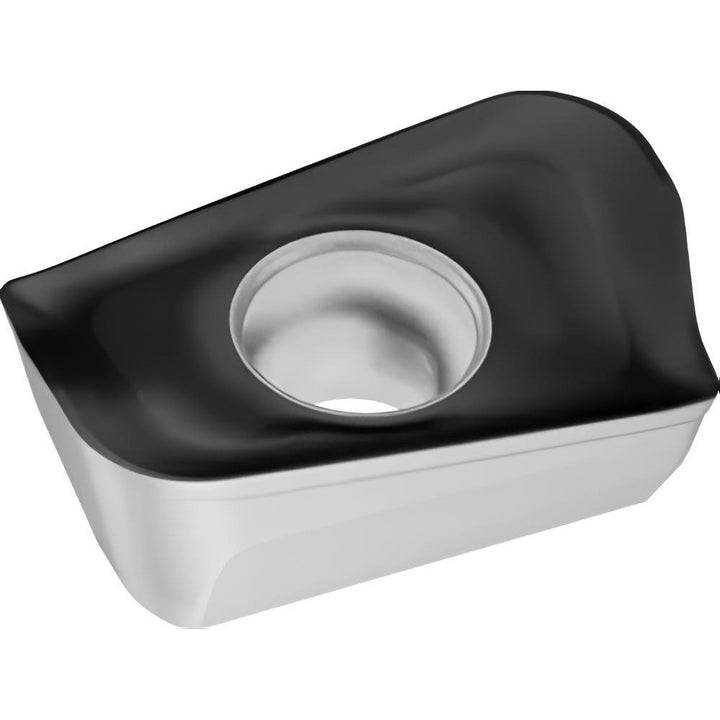

ADMT160632R-F56 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886302

Walter

ADMT160632R-F56 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886302

MFR# 5886302ISO/ANSI# ADMT160632R-F56 WKP35SCat# ADMT160632R-F56Series ADMT

$28.39List $36.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5886302 is a ADMT160632R-F56 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeADMT160632R-F56 WKP35S
Chip breakerF56
Coating finishTiCN
Coating processCVD
Corner radius0.1260
Cutter series compatibilityF2010; F4042; F4238
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.4250
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160632
Insert styleADMT
Iso codeADMT160632R-F56 WKP35S
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberADMT160632R-F56
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.6890
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2420
Thickness range0.2350 to 0.2500
Width0.4250
