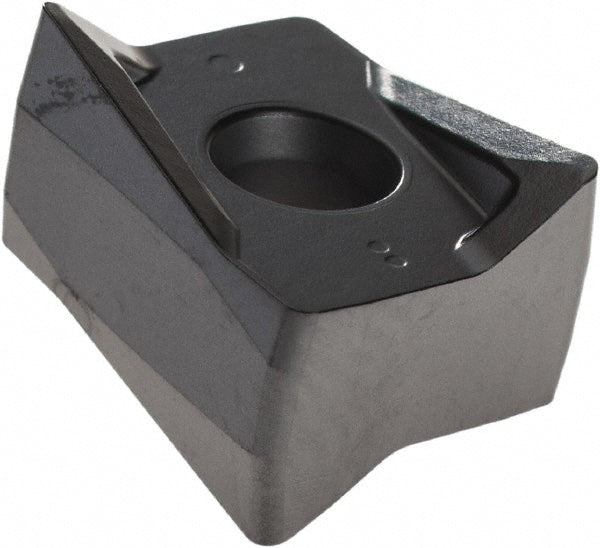

LNGX130708R-L55 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886991

Walter

LNGX130708R-L55 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5886991

MFR# 5886991ISO/ANSI# LNGX130708R-L55 WKP35SCat# LNGX130708R-L55Series LNGX

$29.13List $37.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5886991 is a LNGX130708R-L55 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNGX130708R-L55 WKP35S
Chip breakerL55
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; F4041
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size13
Insert size code130708
Insert styleLNGX
Iso codeLNGX130708R-L55 WKP35S
Length0.5390
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGX130708R-L55
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle28
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3050
Thickness range0.2500 to 0.3500
Width0.4330
