SNGX1205ANN-F27 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5887073

Walter

SNGX1205ANN-F27 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5887073

MFR# 5887073ISO/ANSI# SNGX1205ANN-F27 WKP35SCat# SNGX1205ANN-F27Series SNGX

$32.60List $41.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

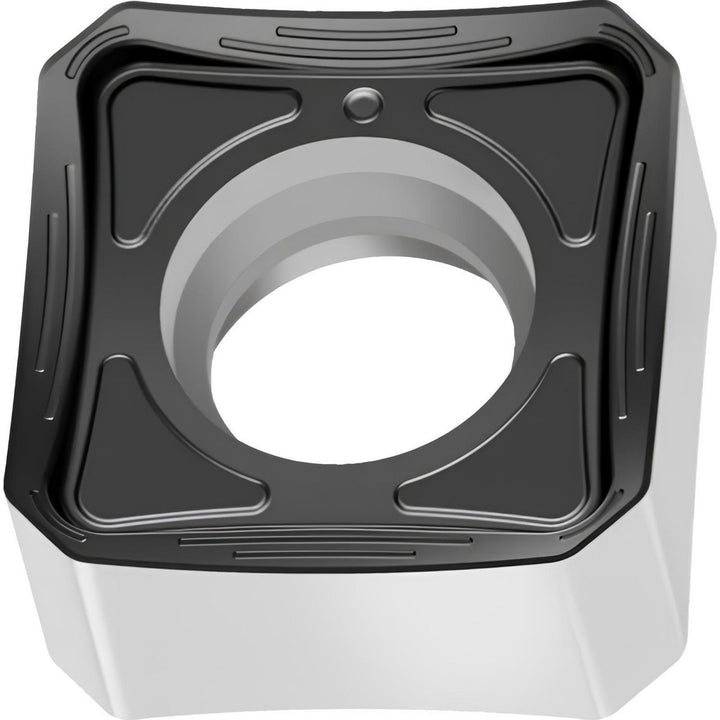

The Walter 5887073 is a SNGX1205ANN-F27 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSNGX1205ANN-F27 WKP35S
Chip breakerF27
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibilityF2010; M5009
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNGX
Iso codeSNGX1205ANN-F27 WKP35S
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSNGX1205ANN-F27
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle16
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2200
Thickness range0.2200 to 0.2350
Width in1/2
