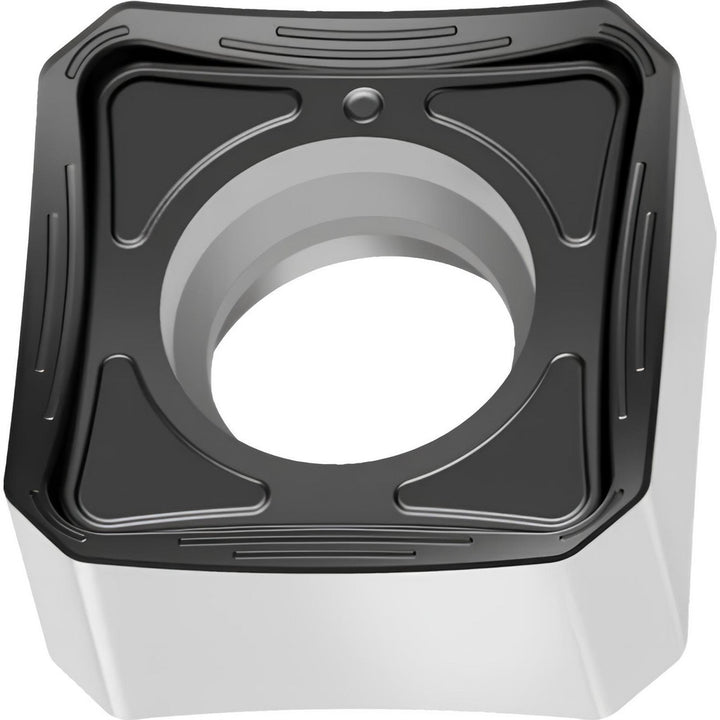

SNMX1205ANN-F57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5887130

Walter

SNMX1205ANN-F57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5887130

MFR# 5887130ISO/ANSI# SNMX1205ANN-F57 WKP35SCat# SNMX1205ANN-F57Series SNMX

$25.70List $32.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5887130 is a SNMX1205ANN-F57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSNMX1205ANN-F57 WKP35S
Chip breakerF57
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibilityF2010; M5009
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNMX
Iso codeSNMX1205ANN-F57 WKP35S
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSNMX1205ANN-F57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle16
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2180
Thickness range0.2000 to 0.2200
Width in1/2
