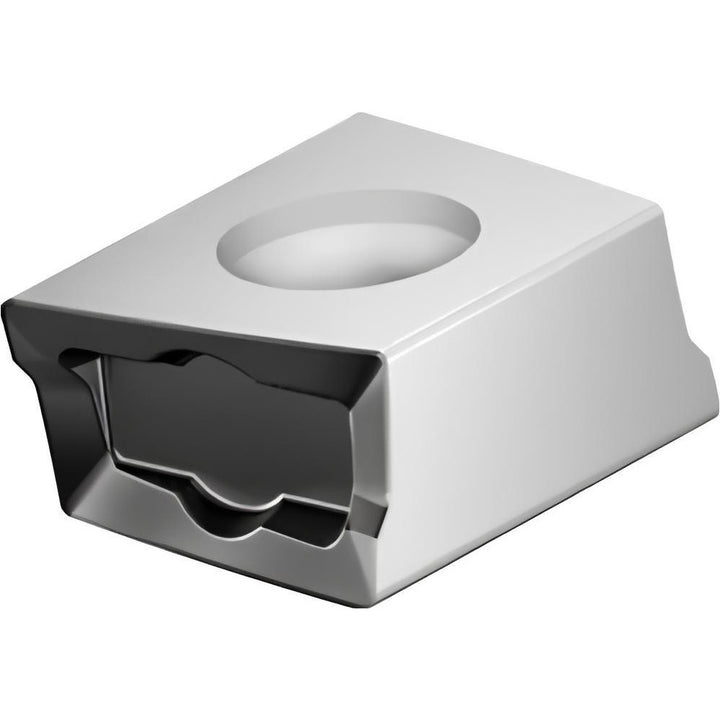

LNMU080404-F57T WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5887937

Walter

LNMU080404-F57T WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5887937

MFR# 5887937ISO/ANSI# LNMU080404-F57T WKP35SCat# LNMU080404-F57TSeries LNMU

$27.29List $35.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5887937 is a LNMU080404-F57T WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNMU080404-F57T WKP35S
Chip breakerF57T
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityF4153; F4253
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code080404
Insert styleLNMU
Iso codeLNMU080404-F57T WKP35S
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberLNMU080404-F57T
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle16
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3700
