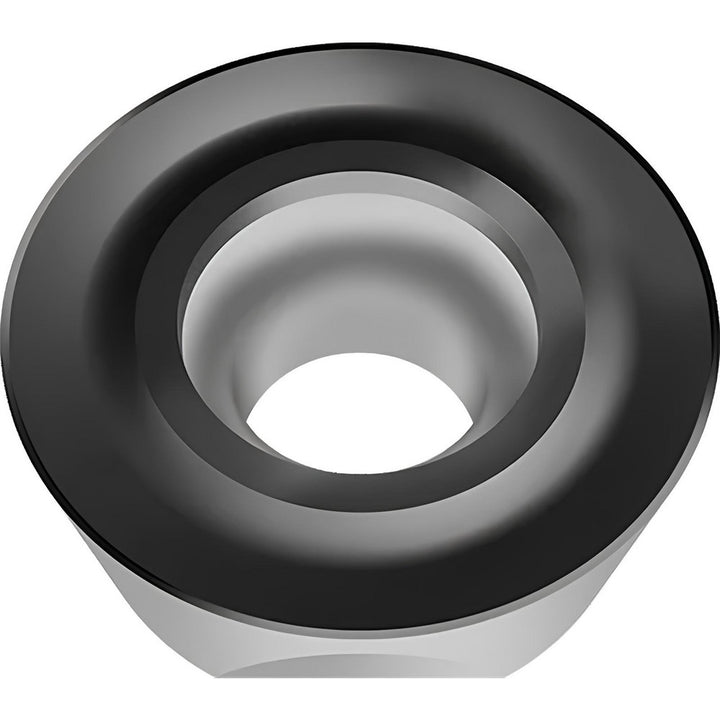

ROHX1204M0-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888009

Walter

ROHX1204M0-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888009

MFR# 5888009ISO/ANSI# ROHX1204M0-D57 WKP35SCat# ROHX1204M0-D57Series ROHX

$20.06List $25.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5888009 is a ROHX1204M0-D57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeROHX1204M0-D57 WKP35S
Chip breakerD57
Coating finishTiCN
Coating processCVD
Convex radius0.2362
Corner radius0.2362
Cutter series compatibilityF2334R
Cutting edge styleHoned
Hole diameter0.1728
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204M0
Insert styleROHX
Iso codeROHX1204M0-D57 WKP35S
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberROHX1204M0-D57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
