P26335R14 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888067

Walter

P26335R14 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888067

MFR# 5888067ISO/ANSI# P26335R14 WKP35SCat# P26335R14Series P26335

$24.75List $31.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

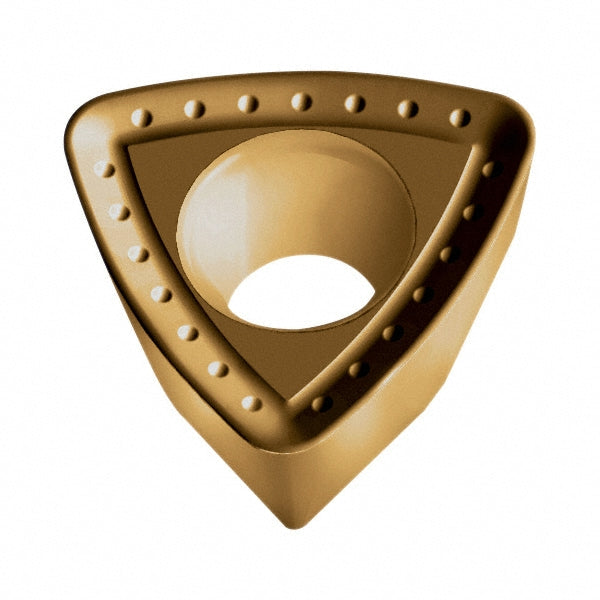

The Walter 5888067 is a P26335R14 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeP26335R14 WKP35S
Chip breakerCommon
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityF2330
Cutting edge styleChamfered; Honed
Hole diameter0.1732
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert sizeP2
Insert size codeP26335
Insert styleP26335
Iso codeP26335R14 WKP35S
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberP26335R14
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.3280
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle14
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
