Walter

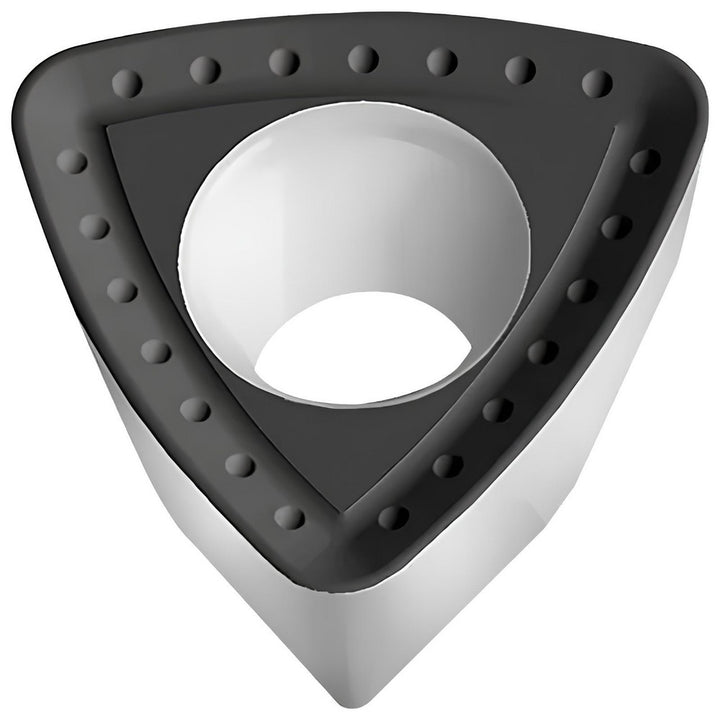

P26335R25 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888068
MFR# 5888068ISO/ANSI# P26335R25 WKP35SCat# P26335R25Series P26335
$33.09List $41.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN
Description
The Walter 5888068 is a P26335R25 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi codeP26335R25 WKP35S
Chip breakerCommon
Coating finishTiCN
Coating processCVD
Corner radius0.0790
Cutter series compatibilityF2010; F2330
Cutting edge styleChamfered; Honed
Hole diameter0.2165
Included angle degree60
Inscribed circle0.5120
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert sizeP2
Insert size codeP26335
Insert styleP26335
Iso codeP26335R25 WKP35S
Length0.5120
Length range0.5000 to 0.6000
Manufacturers catalog numberP26335R25
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.4330
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle14.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.5120
