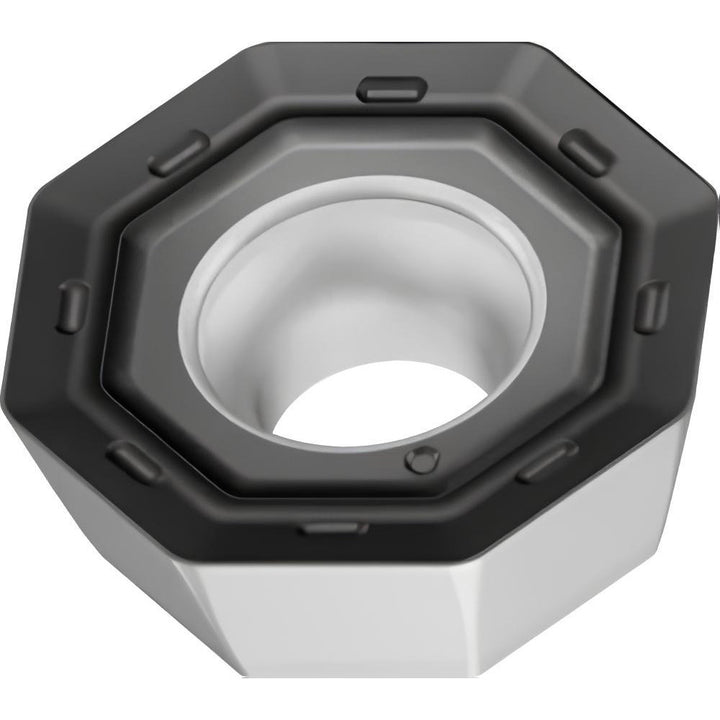

ODMT060512-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888180

Walter

ODMT060512-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888180

MFR# 5888180ISO/ANSI# ODMT060512-D57 WKP35SCat# ODMT060512-D57Series ODMT

$25.53List $32.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeOctagon
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5888180 is a ODMT060512-D57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeODMT060512-D57 WKP35S
Chip breakerD57
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityF2010; M5004
Cutting edge styleHoned
Included angle degree135
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060512
Insert styleODMT
Iso codeODMT060512-D57 WKP35S
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberODMT060512-D57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.2590
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
