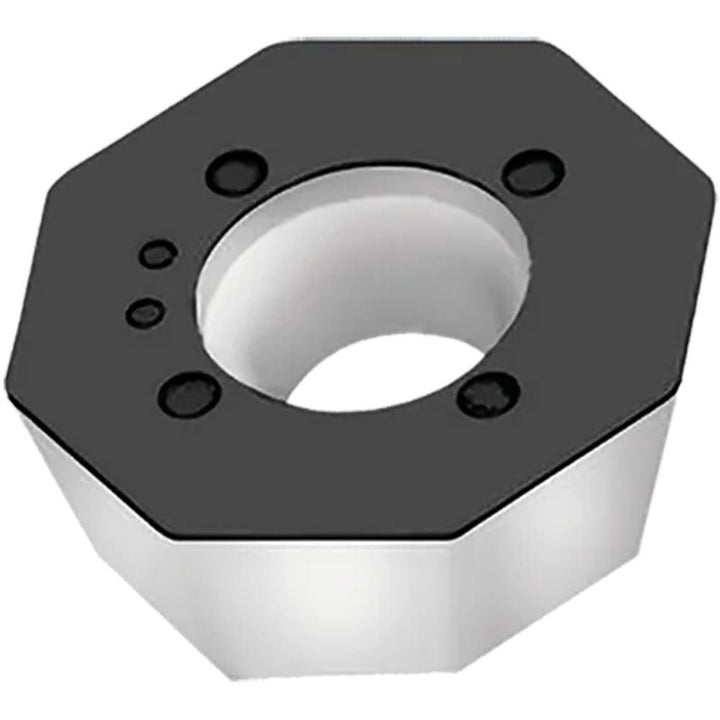

ODMW060508T-A27 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888182

Walter

ODMW060508T-A27 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5888182

MFR# 5888182ISO/ANSI# ODMW060508T-A27 WKP35SCat# ODMW060508T-A27Series ODMW

$23.66List $30.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeOctagon
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5888182 is a ODMW060508T-A27 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeODMW060508T-A27 WKP35S
Chip breakerA27
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; M5004
Cutting edge styleT-Land
Included angle degree135
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060508
Insert styleODMW
Iso codeODMW060508T-A27 WKP35S
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberODMW060508T-A27
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.2590
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
