Walter

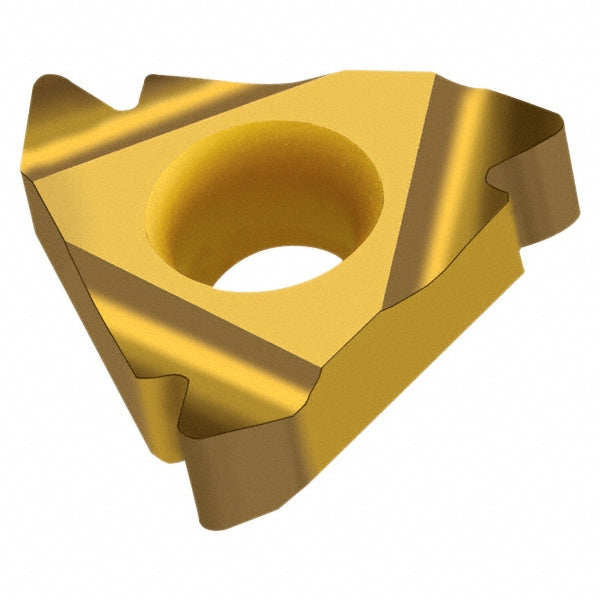

3/8" IC Carbide Insert, Grade WXM20, TiCN - Walter 5894049
MFR# 5894049
$30.75List $39.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeWXM20
MaterialCarbide
CoatingTiCN
Description
The Walter 5894049 is a carbide indexable insert, grade WXM20, TiCN coated. Suited for cast iron, stainless steel.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0030
Cutting edge to theoretical edge length0.0470
Face of insert to tip centerline0.0670
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert styleNTS-ER16
Manufacturer gradeWXM20
Pitch (mm)0.50-3.00
Primary workpiece materialCast Iron; Stainless Steel
StandardsANSI; ISO
Threads per inch8-48
Thread standardPartial Profile 60 Degree
Thread typeExternal
