Walter

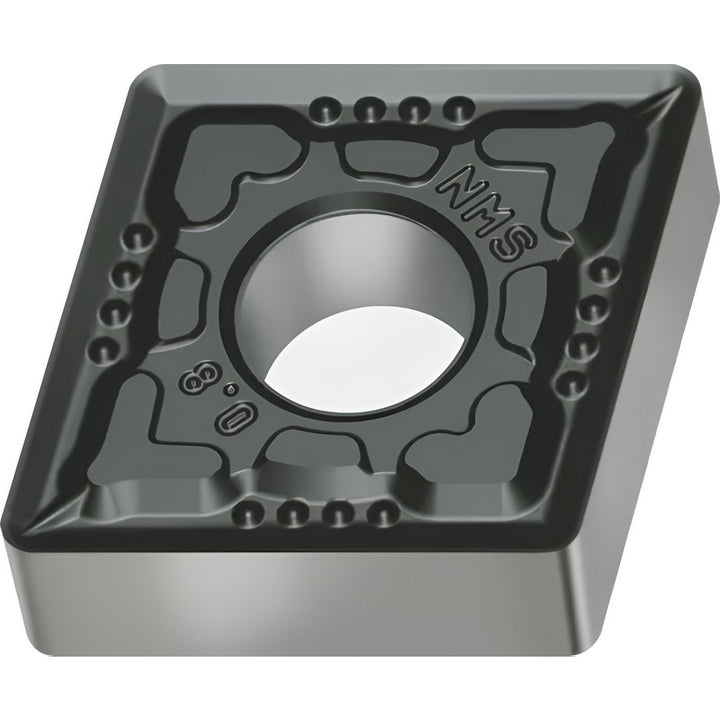

CNMG120404-NMS WSM10 Carbide Insert, Grade WSM10, TiAlN - Walter 5907341
MFR# 5907341ISO/ANSI# CNMG120404Series CNMG-NMS
$18.44List $23.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWSM10
MaterialCarbide
CoatingTiAlN
Description
The Walter 5907341 is a CNMG120404-NMS WSM10 carbide indexable insert, grade WSM10, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerNMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG431-NMS WSM10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-NMS WSM10
Iso insert codeCNMG120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number5907341
Manufacturer gradeWSM10
Material gradeM10; P10; S10
Maximum depth of cut0.0980
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
