Walter

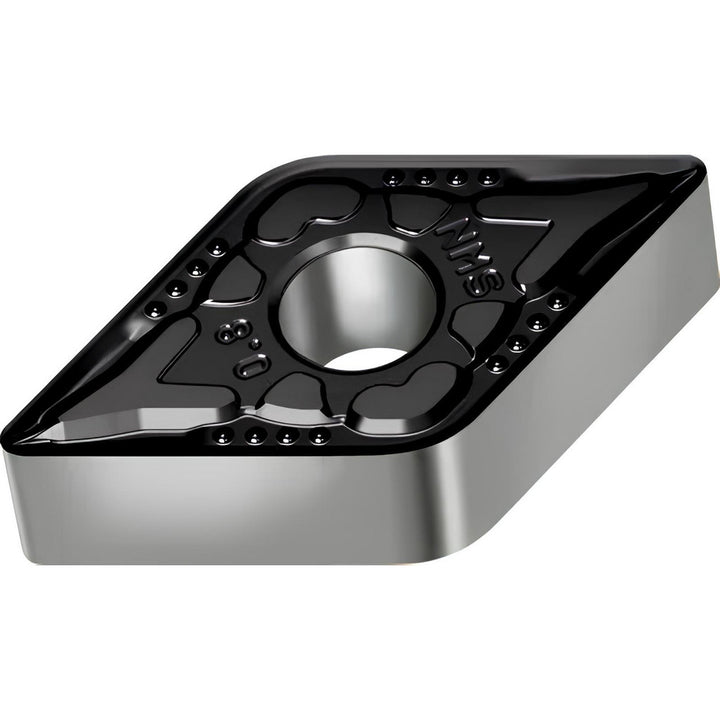

DNMG150408-NMS WSM10 Carbide Insert, Grade WSM10, TiAlN - Walter 5908087
MFR# 5908087ISO/ANSI# DNMG150408Series DNMG-NMS
$23.49List $30.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeWSM10
MaterialCarbide
CoatingTiAlN
Description
The Walter 5908087 is a DNMG150408-NMS WSM10 carbide indexable insert, grade WSM10, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerNMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle55
Industry standard numberDNMG432-NMS WSM10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-NMS WSM10
Iso insert codeDNMG150408
Iso size code150408
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number5908087
Manufacturer gradeWSM10
Material gradeM10; P10; S10
Maximum depth of cut0.1380
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
