Walter

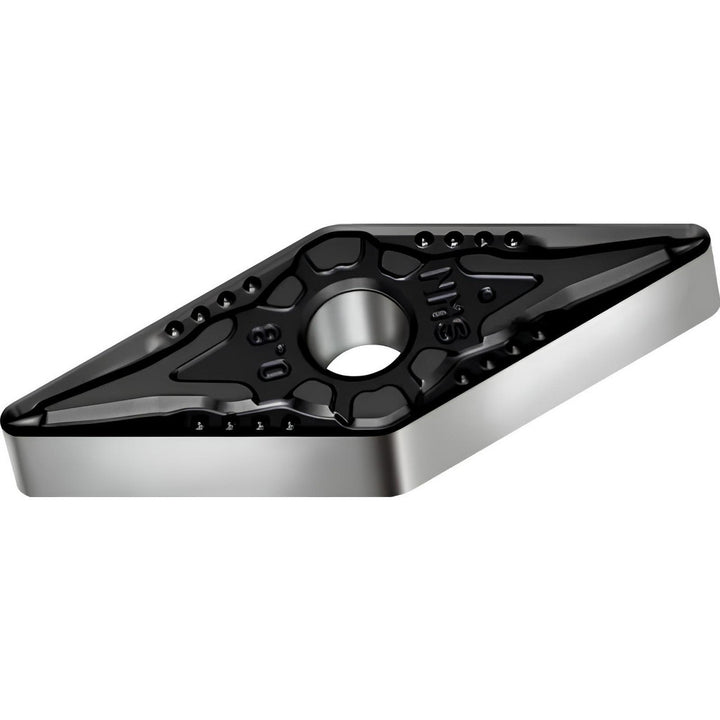

VNMG160408-NMS WSM10 Carbide Insert, Grade WSM10, TiAlN - Walter 5908284
MFR# 5908284ISO/ANSI# VNMG160408Series VNMG-NMS
$33.79List $43.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeWSM10
MaterialCarbide
CoatingTiAlN
Description
The Walter 5908284 is a VNMG160408-NMS WSM10 carbide indexable insert, grade WSM10, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNMG332
Ansi size code332
Chip breakerNMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG332-NMS WSM10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-NMS WSM10
Iso insert codeVNMG160408
Iso size code160408
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number5908284
Manufacturer gradeWSM10
Material gradeM10; P10; S10
Maximum depth of cut0.0870
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
