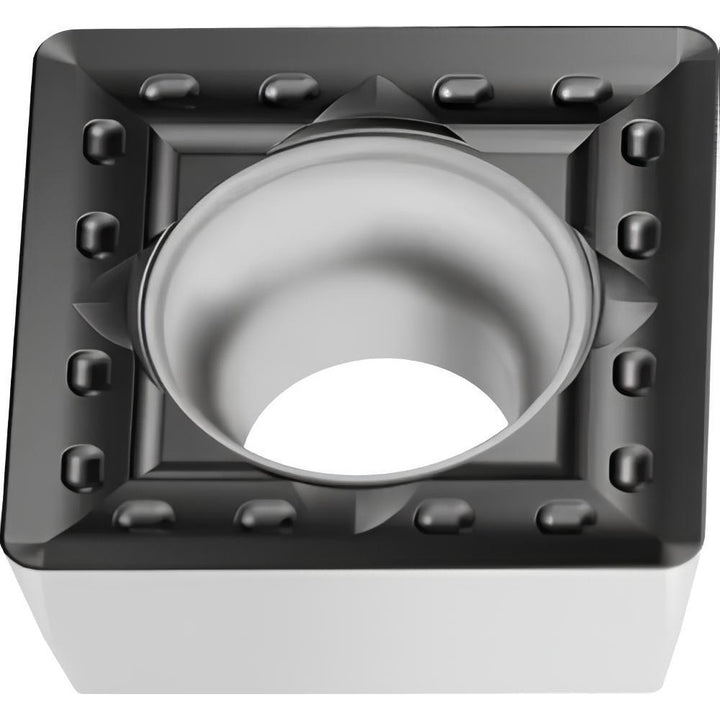

SPMT120408-F55 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5917897

Walter

SPMT120408-F55 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5917897

MFR# 5917897ISO/ANSI# SPMT120408-F55 WKP35SCat# SPMT120408-F55Series SPMT

$19.12List $24.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5917897 is a SPMT120408-F55 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSPMT120408-F55 WKP35S
Chip breakerF55
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2239
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120408
Insert styleSPMT
Iso codeSPMT120408-F55 WKP35S
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPMT120408-F55
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
