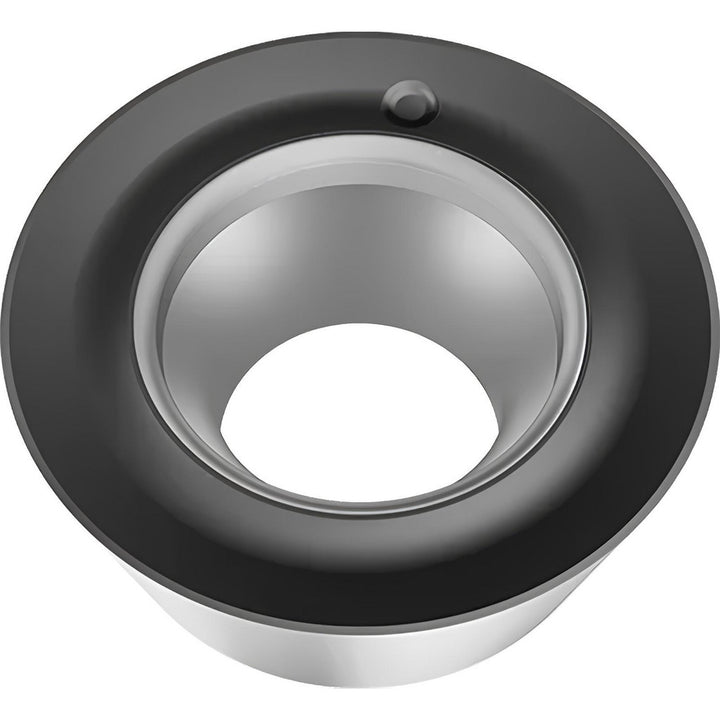

RDMT0803M0-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918028

Walter

RDMT0803M0-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918028

MFR# 5918028ISO/ANSI# RDMT0803M0-D57 WKP35SCat# RDMT0803M0-D57Series RDMT

$13.05List $16.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5918028 is a RDMT0803M0-D57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeRDMT0803M0-D57 WKP35S
Chip breakerD57
Coating finishTiCN
Coating processCVD
Convex radius0.1575
Corner radius0.1575
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree360
Inscribed circle0.3150
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size08
Insert size code0803M0
Insert styleRDMT
Iso codeRDMT0803M0-D57 WKP35S
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberRDMT0803M0-D57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.3150
