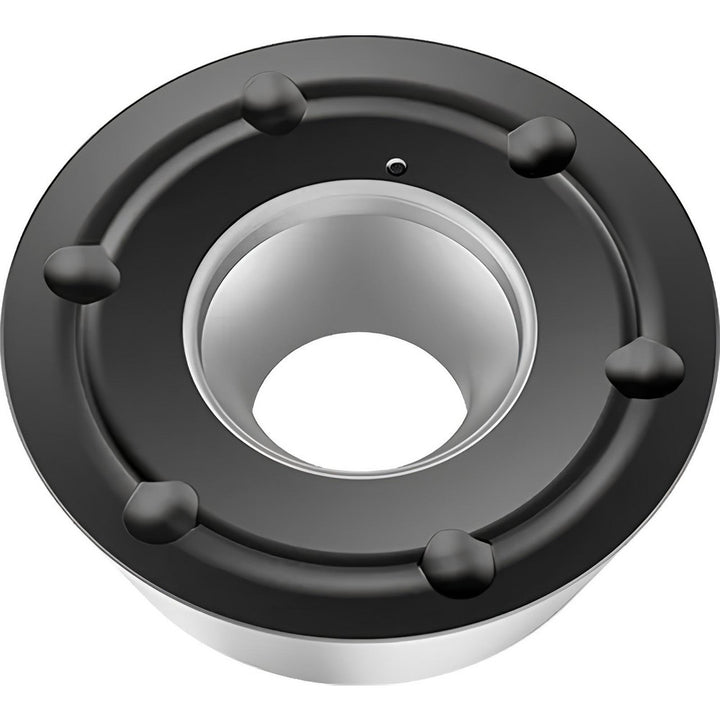

RDMT2006M0-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918053

Walter

RDMT2006M0-D57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918053

MFR# 5918053ISO/ANSI# RDMT2006M0-D57 WKP35SCat# RDMT2006M0-D57Series RDMT

$29.80List $38.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5918053 is a RDMT2006M0-D57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeRDMT2006M0-D57 WKP35S
Chip breakerD57
Coating finishTiCN
Coating processCVD
Convex radius0.3937
Corner radius0.3937
Cutting edge styleHoned
Hole diameter0.2559
Included angle degree360
Inscribed circle0.7874
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size20
Insert size code2006M0
Insert styleRDMT
Iso codeRDMT2006M0-D57 WKP35S
Length0.7874
Length range0.7000 to 0.9000
Manufacturers catalog numberRDMT2006M0-D57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.7874
