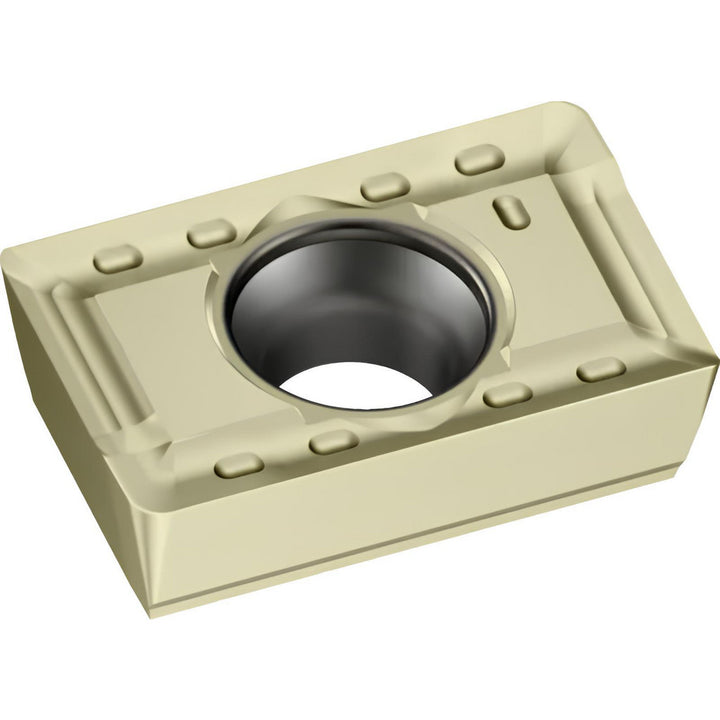

LPGT070304R-F55 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918251

Walter

LPGT070304R-F55 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918251

MFR# 5918251ISO/ANSI# LPGT070304R-F55 WKP35SCat# LPGT070304R-F55Series LPGT

$22.58List $28.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5918251 is a LPGT070304R-F55 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeLPGT070304R-F55 WKP35S
Chip breakerF55
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge effective length (mm)7.94
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle (mm)7.94
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size07
Insert size code070304
Insert styleLPGT
Iso codeLPGT070304R-F55 WKP35S
Length in5/16
Length range0.0000 to 0.3200
Manufacturers catalog numberLPGT070304R-F55
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/4
