Walter
XDMT2004127R-F55 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918773
MFR# 5918773ISO/ANSI# XDMT2004127R-F55 WKP35SCat# XDMT2004127R-F55Series XDMT
$33.79List $43.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN
Description

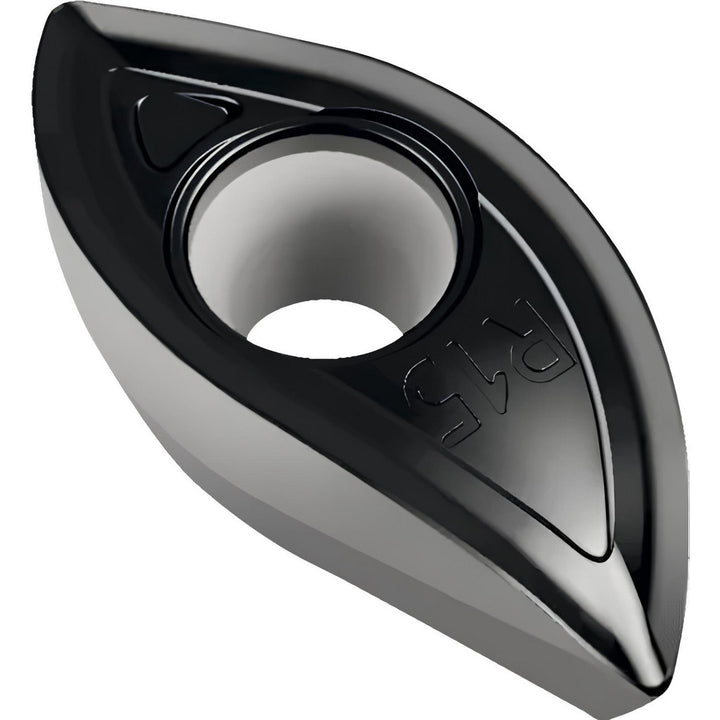

The Walter 5918773 is a XDMT2004127R-F55 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi codeXDMT2004127R-F55 WKP35S
Chip breakerF55
Coating finishTiCN
Coating processCVD
Cutting edge styleChamfered; Honed
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size20
Insert size code2004127
Insert styleXDMT
Iso codeXDMT2004127R-F55 WKP35S
Manufacturers catalog numberXDMT2004127R-F55
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4450
