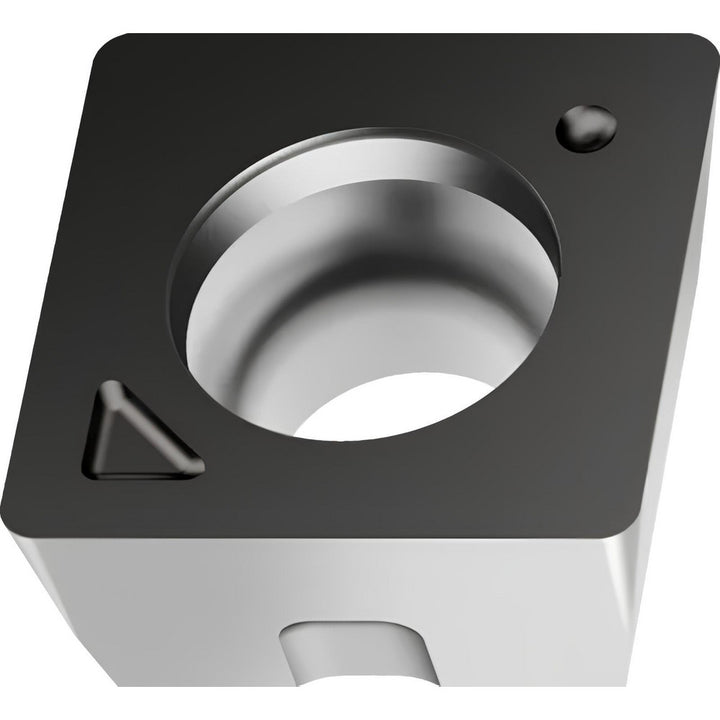

MPHX060304-A57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918803

Walter

MPHX060304-A57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 5918803

MFR# 5918803ISO/ANSI# MPHX060304-A57 WKP35SCat# MPHX060304-A57Series MPHX

$19.53List $25.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeParallelogram
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5918803 is a MPHX060304-A57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeMPHX060304-A57 WKP35S
Chip breakerA57
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityF2252
Cutting edge styleChamfered; Honed
Included angle degree86
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060304
Insert styleMPHX
Iso codeMPHX060304-A57 WKP35S
Length in1/4
Length range0.0000 to 0.3200
Manufacturers catalog numberMPHX060304-A57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/4
