Walter

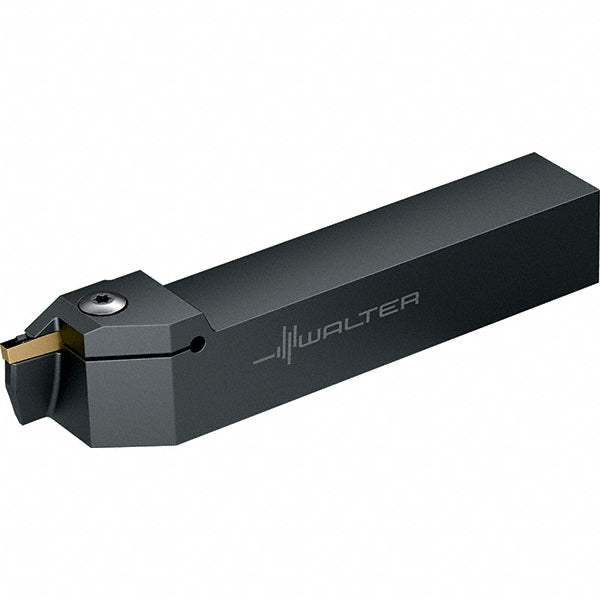

Indexable Grooving - Walter 5936241

MFR# 5936241Series G1111

$237.12List $277.57 Save 14%

In stock - ships in 1-3 business days

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Walter 5936241 indexable grooving. Suited for stainless steel, steel, superalloy, titanium, titanium alloy. Series G1111.

Specifications

Back of bar to cutting edge0.9840

Compatible insert size codeGXE; GXF

Complete insert compatibilityGX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N020-CE4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N15-RD4; GX24-2E300N150-RD4

Coolant throughNo

Full radius insertNo

Hand of holderRight Hand

Head length1.7323

Insert compatibilityGX24-2E3..

Insert holding methodClamp

Maximum depth of cut0.8661

Maximum groove width0.1252

Maximum workpiece diameter11.8110

Minimum groove width0.1181

Multi use toolYes

Overall length6.063

Primary workpiece materialStainless Steel; Steel; Superalloy; Titanium; Titanium Alloy

Shank height1.0000

Shank length4.3307

Toolholder styleG1111

Toolholder typeExternal Grooving
